Solid carbide drills

The requirements in modern machining technology are becoming increasingly varied. In addition to the constant endeavours to streamline and improve manufacturing processes, further challenges and problem areas are added as a result of new materials and processing methods being used. These must be accepted and solved with an innovative spirit. Out of this area of tension, a wide range of standardised drilling tools was created that fulfils the desire for tools that can be used universally but was also developed for specific fields of application.



Our complete product range

The PDF versions of our product catalogues are available to download from the Info Centre.

+ To the Info Centre

Our current highlights

Reliable chip removal thanks to shorter chips


The Tritan-Drills with three cutting edges have become widely established thanks to their major benefits with regard to cost-effectiveness. Continuous further developments improve the performance of these tools in many respects.

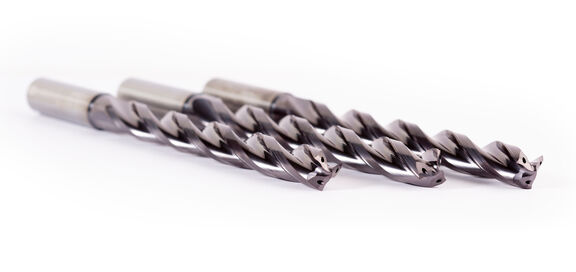

A self-centring chisel edge and innovative point thinning are the geometric highlights of the new Tritan-Drill-Uni-Plus. They ensure shorter chips.

The innovative MxP high-performance coating and precision-ground chip flutes guarantee the smooth removal of the chips from the bore.

At a glance

  • Available in a diameter range from 4.00 to 20.00 mm and in 5xD, 8xD and 12xD designs
  • Innovative MxP high-performance coating

Your advantages

  • Optimum removal of chips
  • High feed values possible
  • Benefits in terms of tool life compared with previous models

Drilling steel far more cost-effectively

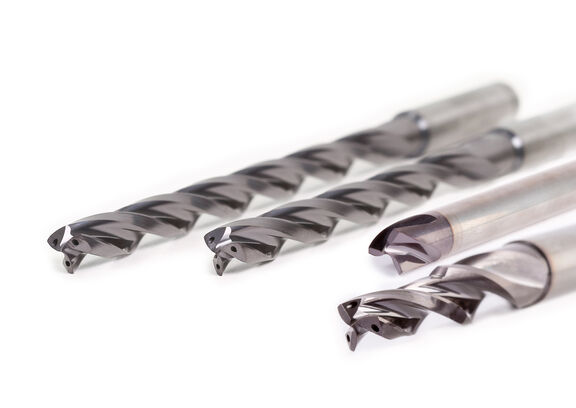

The Tritan-Drill-Steel family provides you with fully-fledged specialists for different drilling applications, specially tailored for the requirements of steel machining:

The Tritan-Drill-Steel, the Tritan-Spot-Drill-Steel for pilot drilling and the Tritan-Step-Drill-Steel for stepped bores.

At a glance

  • Available in a diameter range from 4.00 to 20.00 mm
  • Tritan-Drill-Steel available in 3xD, 5xD, 8xD and 12xD designs
  • Step drills for thread sizes from M5 to M16

Your advantages

  • Robust tools with stable cutting edges
  • No oscillation during machining
  • Significantly higher feed values possible
  • Long tool lives
  • Fast, reliable chip removal

Maximum speed in steel

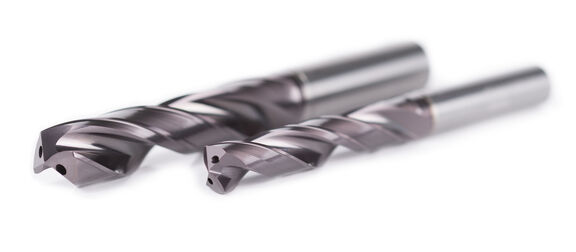

We have also further developed the MEGA-Speed-Drill especially for machining steel materials. The optimised tool geometry enables customers to apply double cutting speeds and significantly higher feeds than can be achieved with conventional double-edged solid carbide drills.

At a glance

  • Available in a diameter range from 3.00 to 20.00 mm and in the lengths 3xD, 5xD and 8xD
  • Form and design of cutting edge optimised
  • Unique precision-ground flute profile
  • Extremely robust and resilient cutting edges

Your advantages

  • Twice the cutting speed and feeds that are up to 20 percent higher when compared with conventional double-edged solid carbide drills
  • Longer tool lives
  • Faster chip removal
  • Overall: considerable productivity benefits

Four guiding chamfers for maximum bore quality, concentricity and positional accuracy

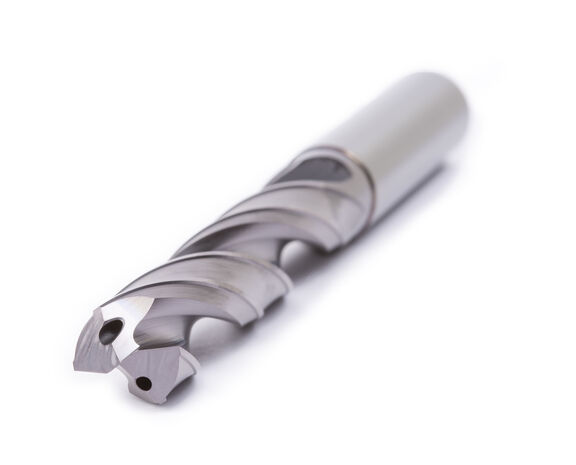

We have refined the micro- and macro geometry of the proven solid carbide drills from the MEGA-Quadro-Drill series in order to obtain a real “Plus” for you. As a result, the new tools have a tool life that is up to 50 percent longer than their predecessors.



At a glance

  • Upgrade to the MEGA-Quadro-Drill series with refined micro- and macro geometry
  • Available in a diameter range from 3.00 to 20.00 mm and in the lengths 5xD without internal cooling as well as 5xD, 8xD and 12xD with internal cooling
  • Higher wear resistance thanks to the innovative MxP coating

Your advantages

  • Tool life increases of up to 50 percent compared with the previous version
  • Higher cutting speed
  • Higher feed
  • Overall: cost-effectiveness benefits

Cost-effective machining of tapping drill bores in accordance with DIN 8378

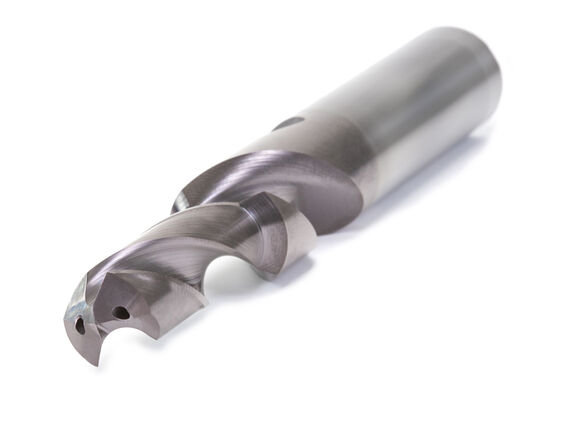

With an optimised point thinning and two guiding chamfers, the new MEGA-Step-Drill-Steel-Plus brings about a considerable increase in wear resistance and performance.

At a glance

  • Available in a diameter range from 2.50 to 15.00 mm with and without internal cooling
  • For machining tapping drill bores in accordance with DIN 8378
  • Optimised micro- and macro geometry
  • Innovative MxP coating increases wear resistance

Your advantages

A considerable increase in performance and wear resistance compared with the predecessor:

  • Cutting speed 15 percent higher
  • Feeds 15 percent higher
  • Tool lives 50 percent longer

Reliable machining of hardened workpiece materials up to 65 HRC

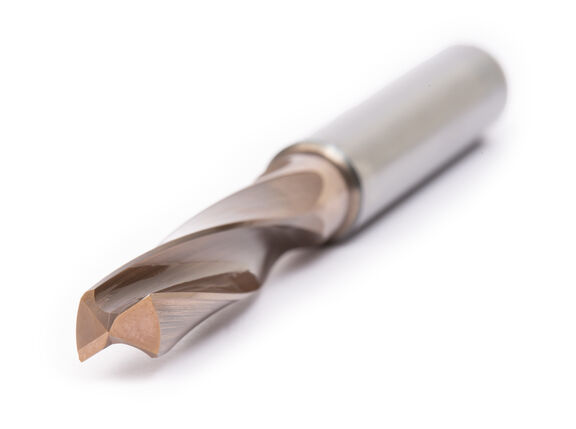

The new MEGA-Drill-Hardened processes workpiece materials with a hardness of up to 65 HRC reliably and cost-effectively.
To achieve this effect, we have revised the drill’s micro- and macro geometry and opted for a new carbide substrate. Significantly longer tool lives are the result.

At a glance

  • Available in a diameter range from 3.00 to 20.00 mm and in the length 3xD
  • Micro- and macro geometry adapted for machining workpiece materials with a hardness of up to 65 HRC
  • New carbide substrate makes for maximum wear resistance

Your advantages

  • Process reliability in the machining of hardened workpiece materials
  • Longer tool lives thanks to the innovative cutting material: 150 percent increase compared with the predecessor
